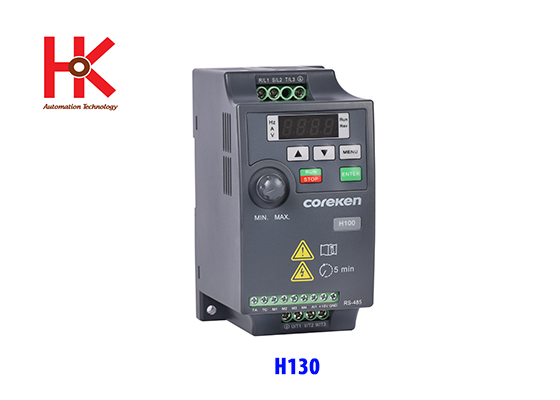

Item

Specification

Basic function

Tần Số Tối Đa

600Hz

Tần Số Sóng Mang

0.5kHz~16kHz;The carrier frequency is automatically adjusted based on the load features.

Input frequency resolution

Digital setting: 0.01Hz

Analog setting: maximum frequency ×0.5%

Chế độ điều khiển

Voltage/Frequency(V/F) control

Overload capacity

Model G machine: 60s for 150% of the rated current, 1s for 180% of the rated current

Torque boost

Customized boost 0.1%-30.0%

V/F curve

Three methods: straight-line V/F curve; Multi-point V/F curve; N-power V/F curve (1.6 power, 2 power)

Acceleration and deceleration curve

Straight line or S-curve acceleration and deceleration mode; Four groups of acceleration/deceleration; time with the range of 0.0-6500.0s

DC braking

DC braking frequency: 0.00 Hz to maximum frequency

Braking time: 0.0-36.0s

Braking action current value: 0.0%-100.0%

JOG control

Braking current: 0.0%~100.0%

JOG frequency range：0.00-50.00Hz

JOG acceleration/deceleration time: 0.0-6500.0s

Simple PLC, multi-wire segment

Up to 16 speeds can be achieved via the onboard PLC or control terminals

Onboard PID

It realize process-controlled closed loop control system easily

Auto voltage regulation(AVR)

It can keep constant output voltage automatically when the mains voltage changes

Overvoltage/Overcurrent stall control

The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to overvoltage/overcurrent.

Operation and Protection

Running command source

Operation panel

Control terminals

Serial communication port

You can perform switchover between these sources in various ways.

Frequency source

There are a total of 8 frequency sources, such as digital setting, analog voltage setting, analog current setting, pulse setting and serial communication port setting.

Input terminal

4 digital input(DI) terminals

1 analog input(AI) terminals, which supports 0-10v voltage input or 4-20 mA current input

Output terminal

1 relay output terminal

Protection mode

Motor short-circuit detection at power-on, output phase loss protection, overcurrent protection, overvoltage protection, undervoltage protection, overheat protection and overload protection.

Options

Optional RS485 external keypad, through the RJ-11 communication terminal
